Overview
OEM-compatible sensor for WSX laser cutting heads. Restores precise height sensing and stable cutting protection with a quick, drop-in replacement.
- 100% fit for common WSX heads; no head modification required
- Stable feedback for piercing and cutting protection
- Anti-static, foam-protected packing for safe shipping
Compatibility
- KC13-15

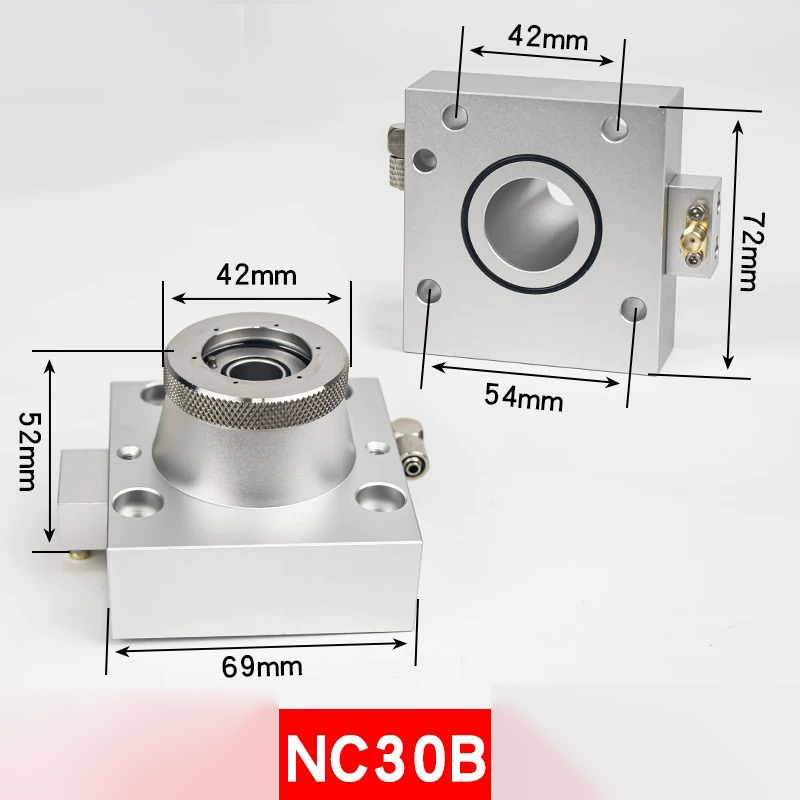

- NC30B (side suction)

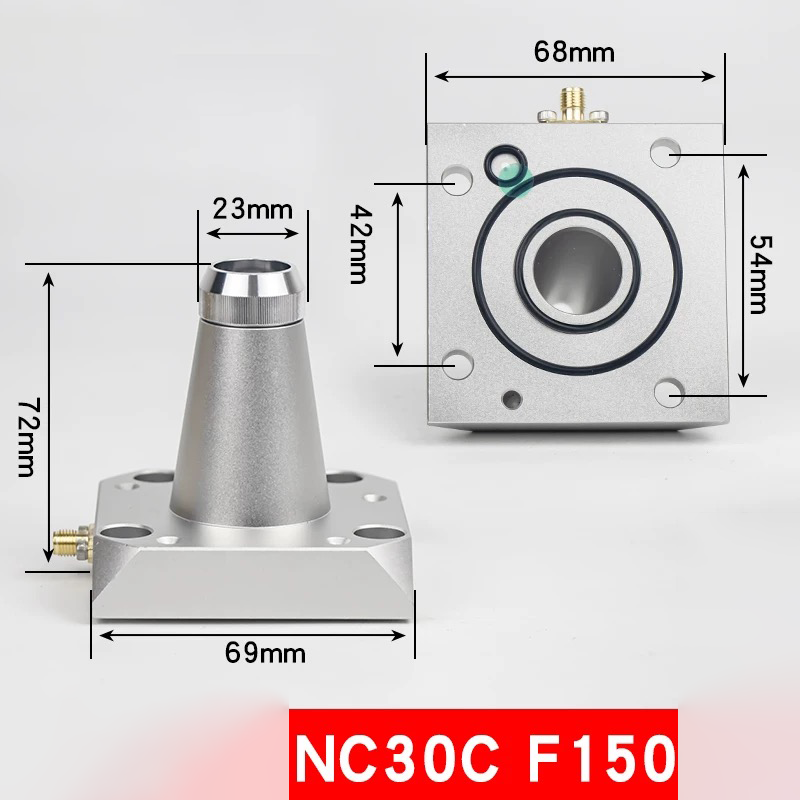

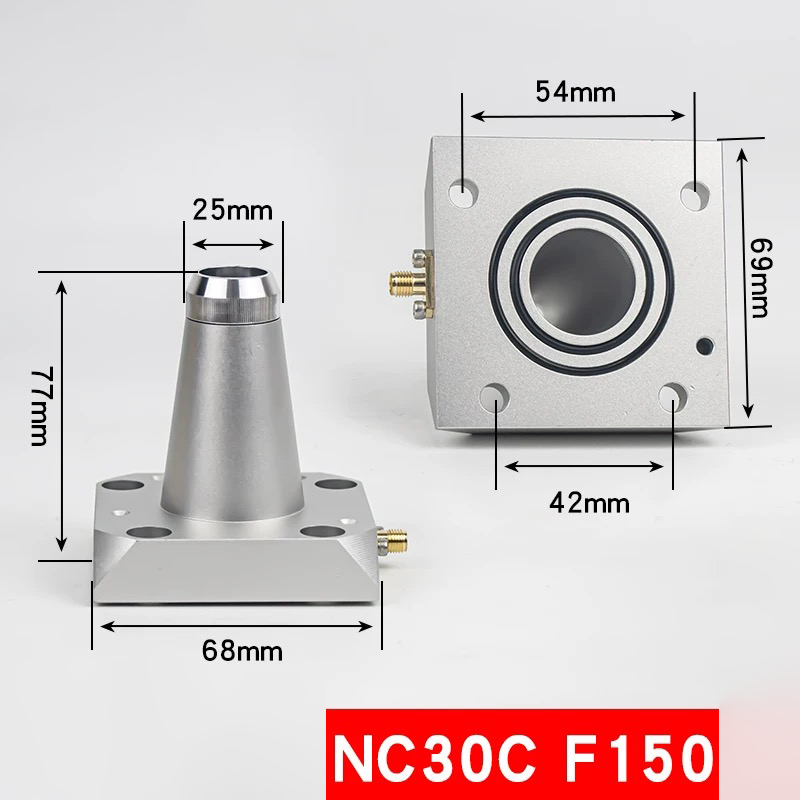

- NC30C-F150 / NC30C-F150 (New)

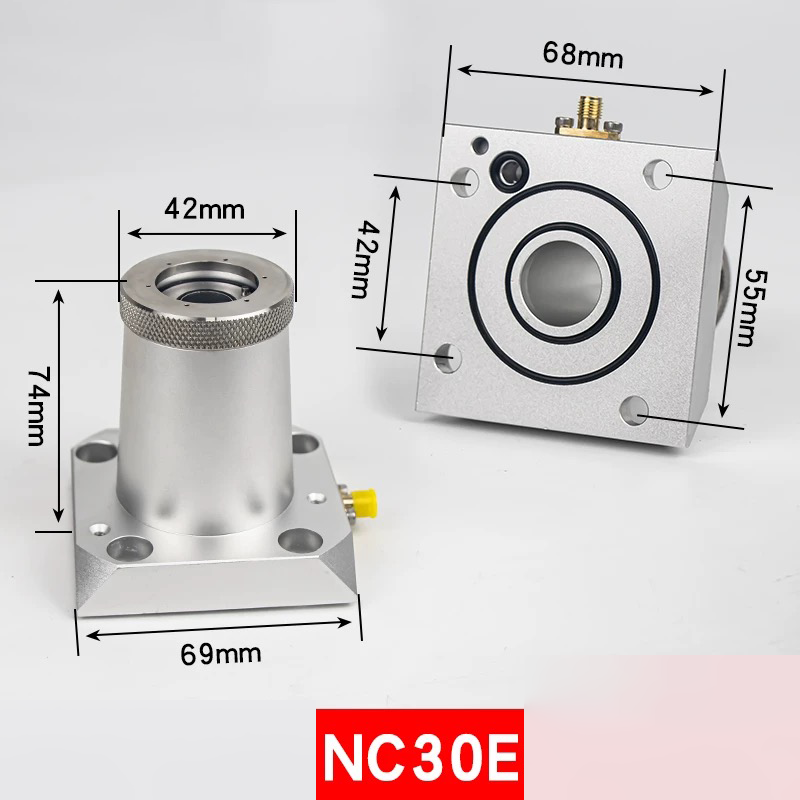

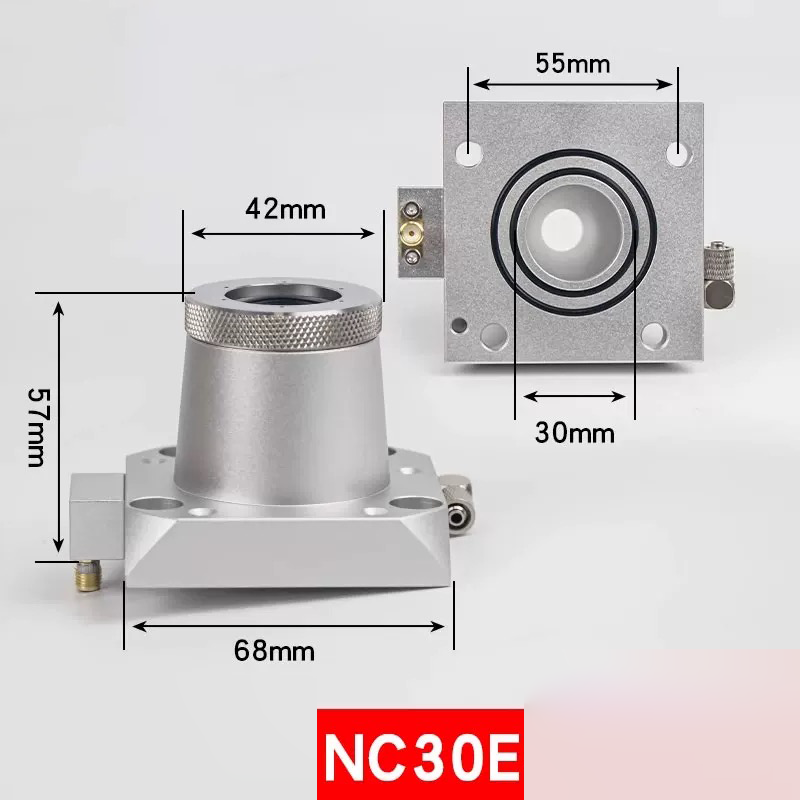

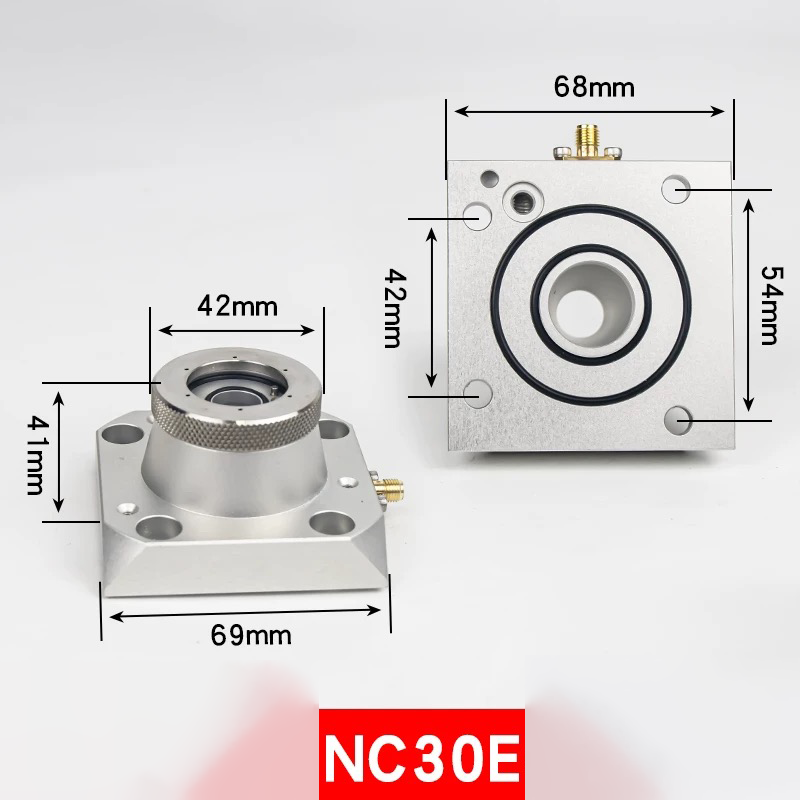

- NC30E (H41) / NC30E (H57) / NC30E (H74)

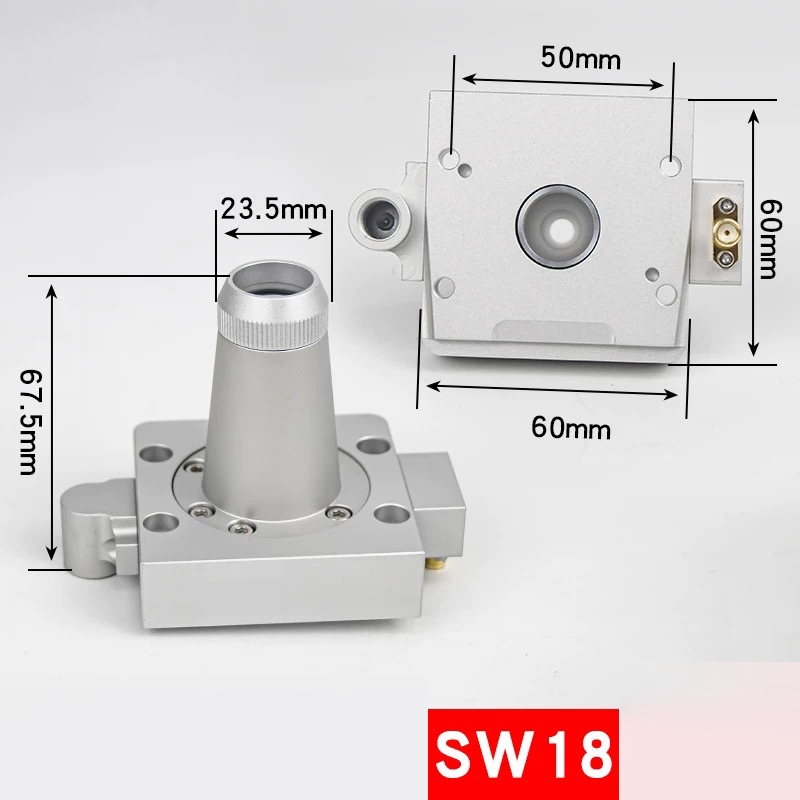

- SW18

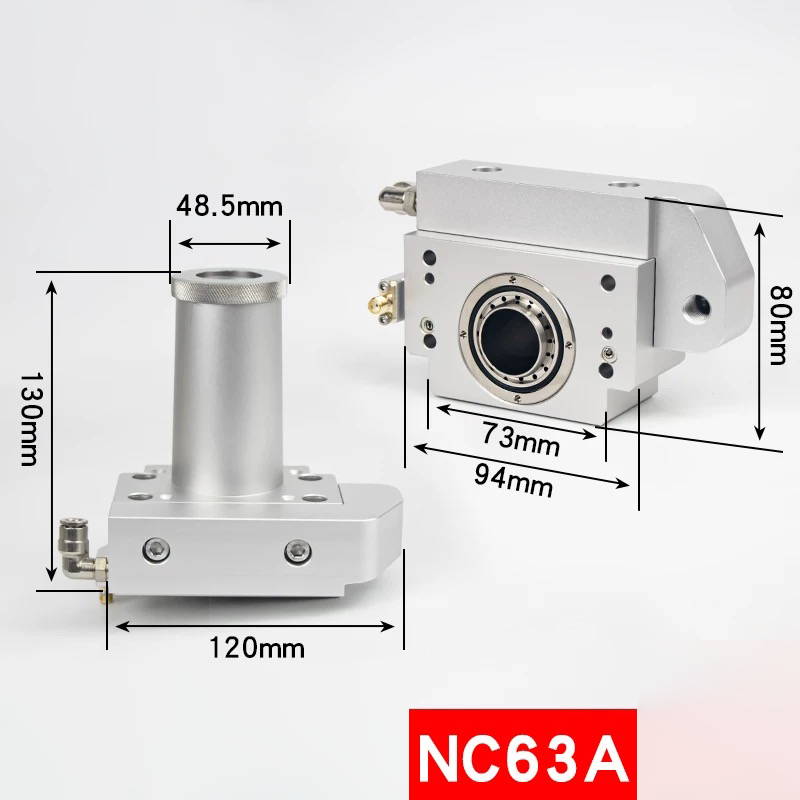

- NC63A-F200
| Specification | Details |
|---|---|
| Model / Attribute | WSX Sensor |
| Function | Height sensing / cutting protection feedback |
| Weight | 1 kg |
| Tax | Tax-free item |
| In the box | Sensor module ×1; protective packing |
Installation Notes
- Power off and cool down the cutting head.
- Remove the old sensor and clean connectors/surfaces.
- Install the new sensor and ensure a firm, aligned connection.
- Run calibration / nozzle test according to the WSX manual.
Recommended with: nozzle connector (ceramic holder), protective windows, ceramic rings, single-/double-layer nozzles.
Courier freight is confirmed by destination, weight and carton size. We normally ship by DHL, UPS or FedEx with tracking.
If you are unsure about compatibility, send the cutting-head model, source model, part code or dimensions before ordering. Custom, special-order and opened optical parts are handled according to the agreed order terms.
