Laser Collimating & Focusing Lenses

Our laser collimating and focusing lenses are precision-engineered for high-performance laser cutting heads from top brands like Raytools, Precitec, WSX, BOCI, OSPRI. With high transmission, optimized AR coating, and low-loss optical design, these lenses deliver superior beam quality, stable cutting performance, and extended service life.

Whether you need original OEM parts or premium-compatible replacements, our lenses ensure perfect fit, easy installation, and consistent performance for demanding industrial applications.

Compatibility

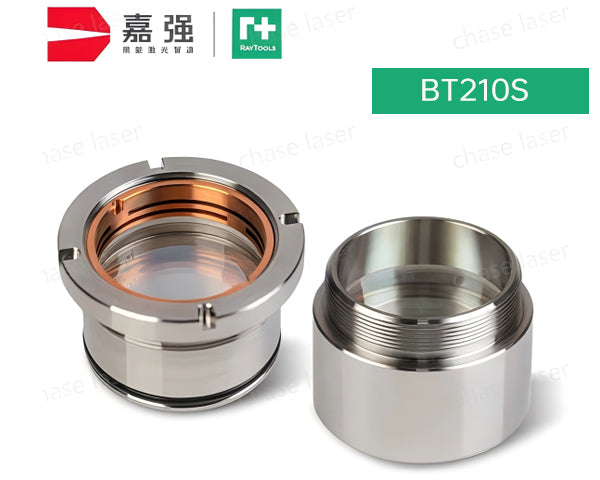

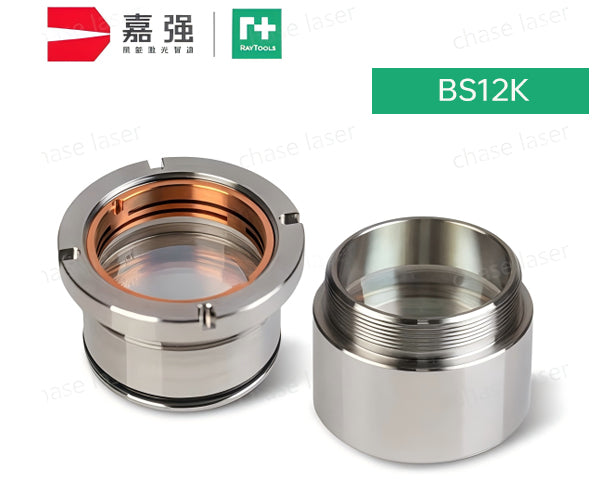

• Raytools – BMH109, BMH110, BMH111, BMH114S, BT210S, BT240, BT240S, BM06K, BS12K
• Precitec – LightCutter, ProCutter, ProCutter 2.0, ProCutter Zoom 2.0, ProCutter Thunder, ProCutter HP, ProCutter Zoom HP, ProWeld, FineCutter, ScanMaster
• WSX – NC30, NC30A, NC30B, NC30B PLUS, NC50B, NC50C, NC60B, KC15, KC20, KC30
• BOCI – BM109, BM109D, BM110, BM111, BM114S, BT210, BT210S, BT240, BT240S, BM06K, BS12K
• OSPRI – OSH100, OSH110, OSH120, OSH150, OSL200, OSL250, OSL300

Specifications

• Focal Lengths: F100, F125, F150, F200
• Lens Diameters: D28, D30, D37
• Types: Collimating lenses & focusing lenses, single or combined sets
• Material: High-purity fused silica with AR coating

Advantages

• High Transmission – Maximizes laser efficiency
• Low Loss – Improves cutting precision & reduces energy waste
• Multiple Options – OEM & compatible replacements available
• Easy Replacement – Accurate fit for quick installation

Global Shipping

We offer fast worldwide delivery from our international warehouses, ensuring minimal downtime and consistent supply for your production line.
