Overview
OEM-compatible sensor module for Raytools laser cutting heads. It restores precise height sensing and stable cutting protection with a quick, drop-in replacement.
- Plug-and-play replacement; no head modification required
- Stable feedback for piercing and cutting protection
- Anti-static, foam-protected packing for safe shipping
| Specification | Details |
|---|---|
| Model / Attribute | Raytools Sensor |

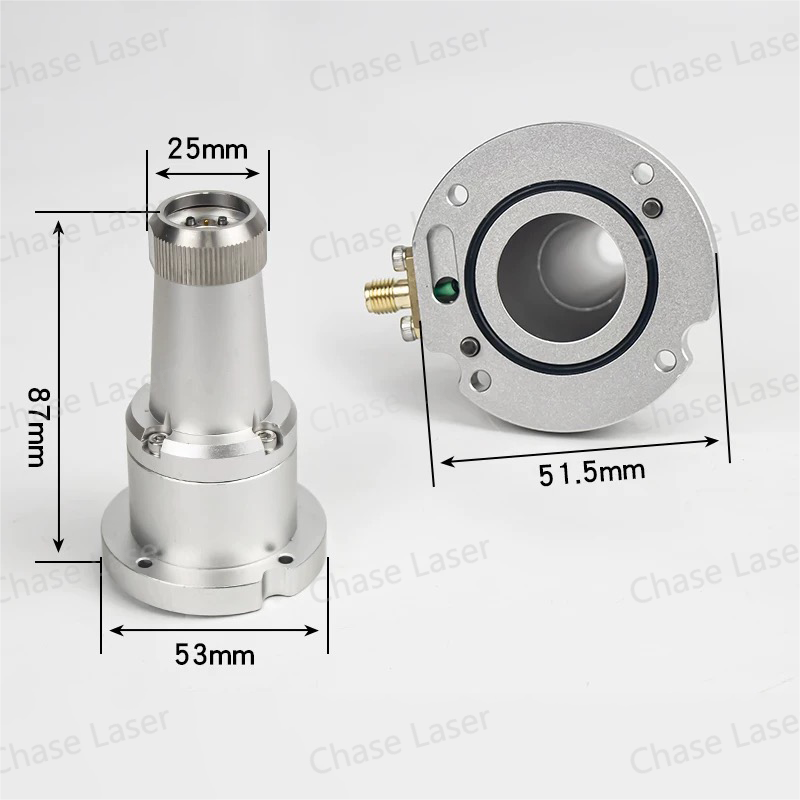

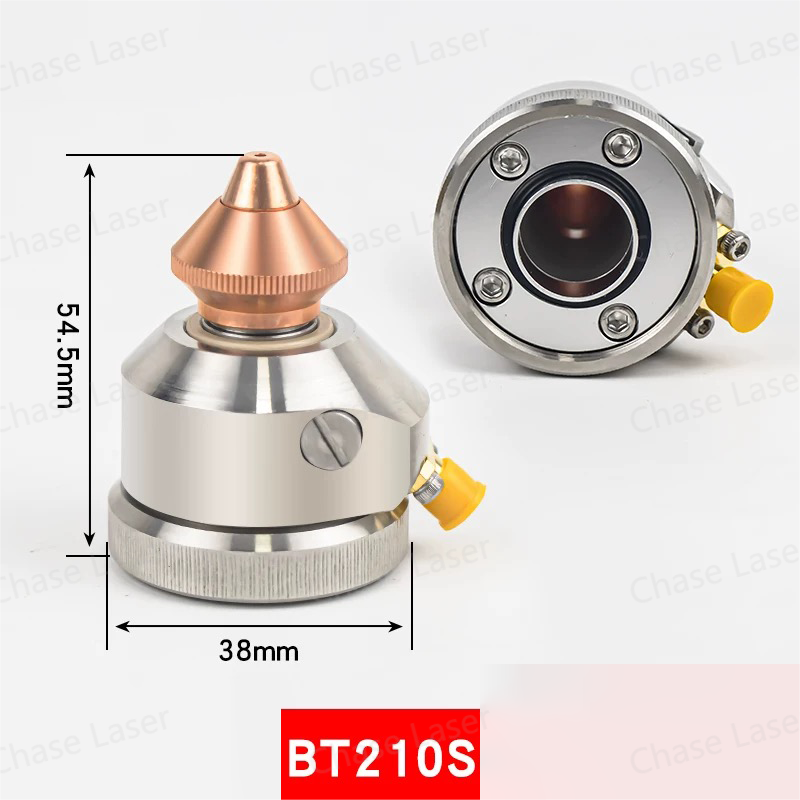

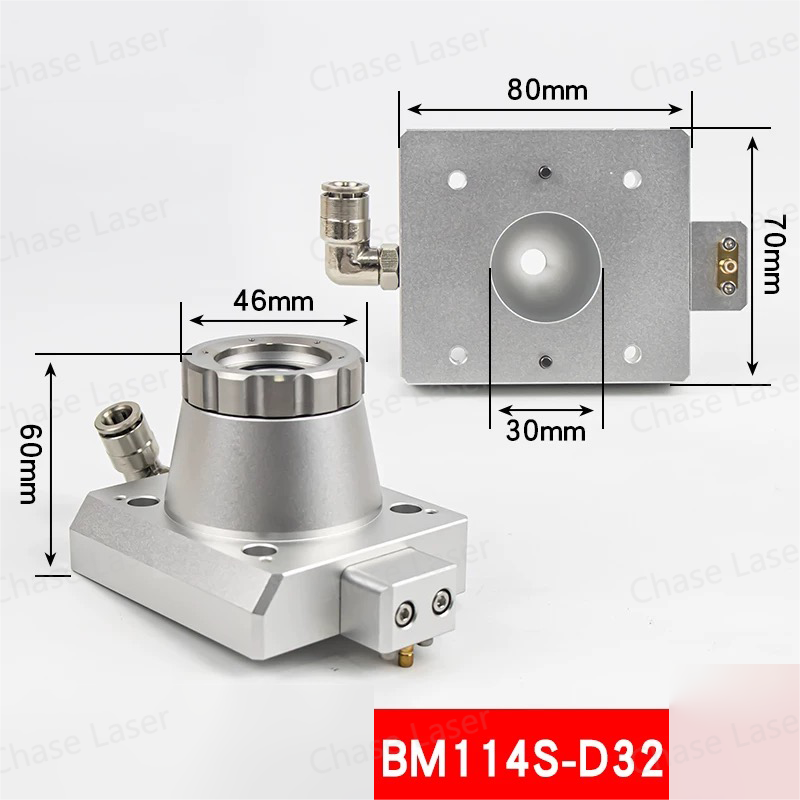

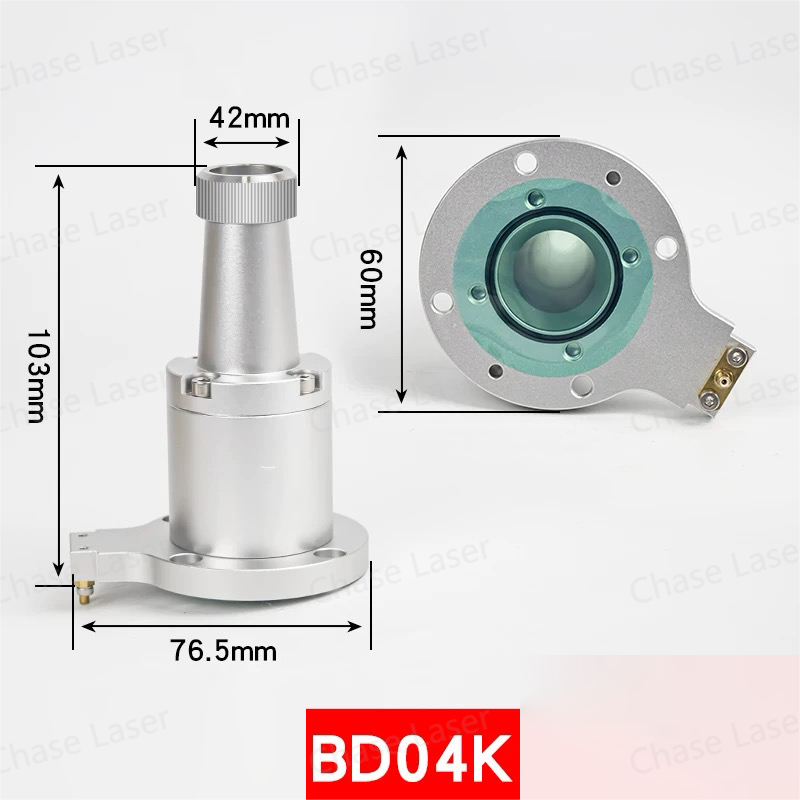

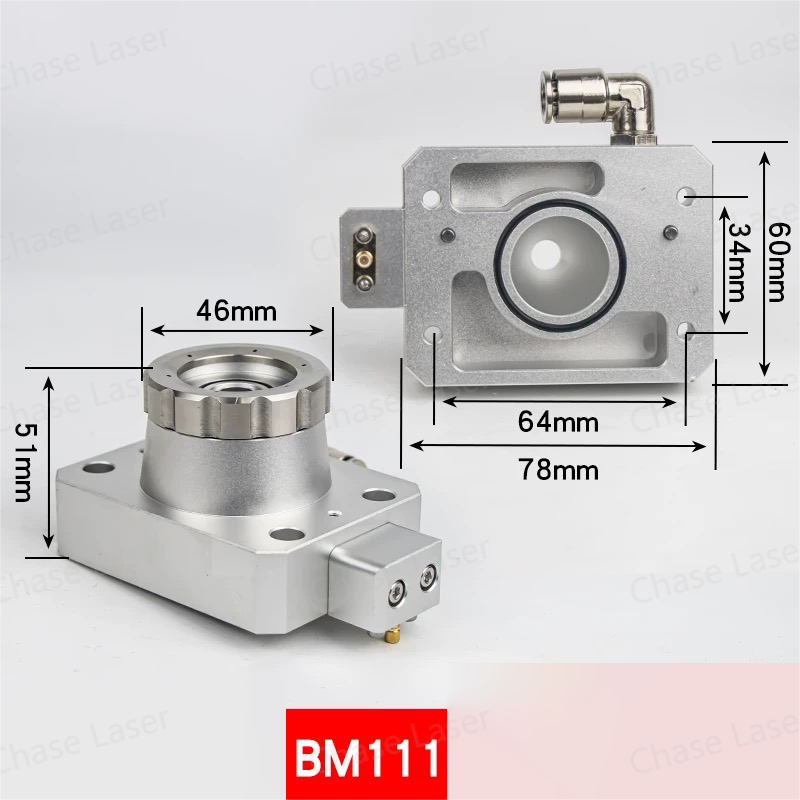

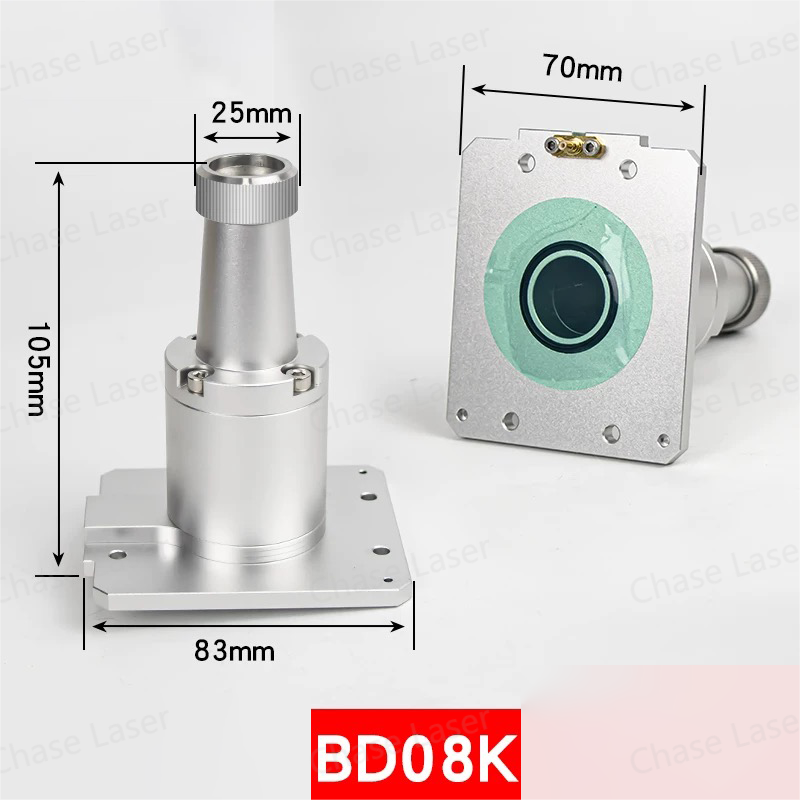

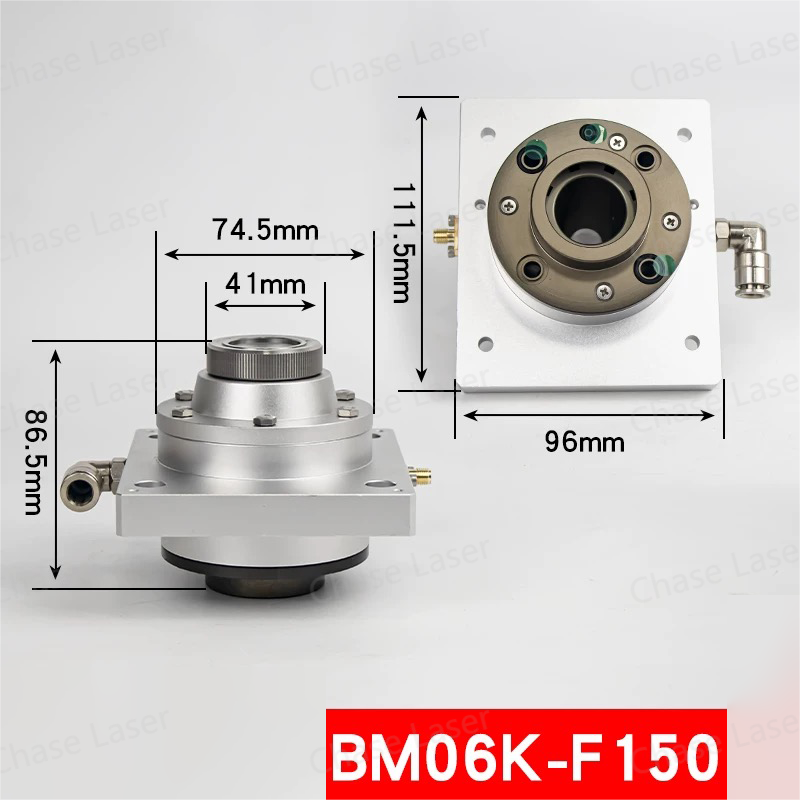

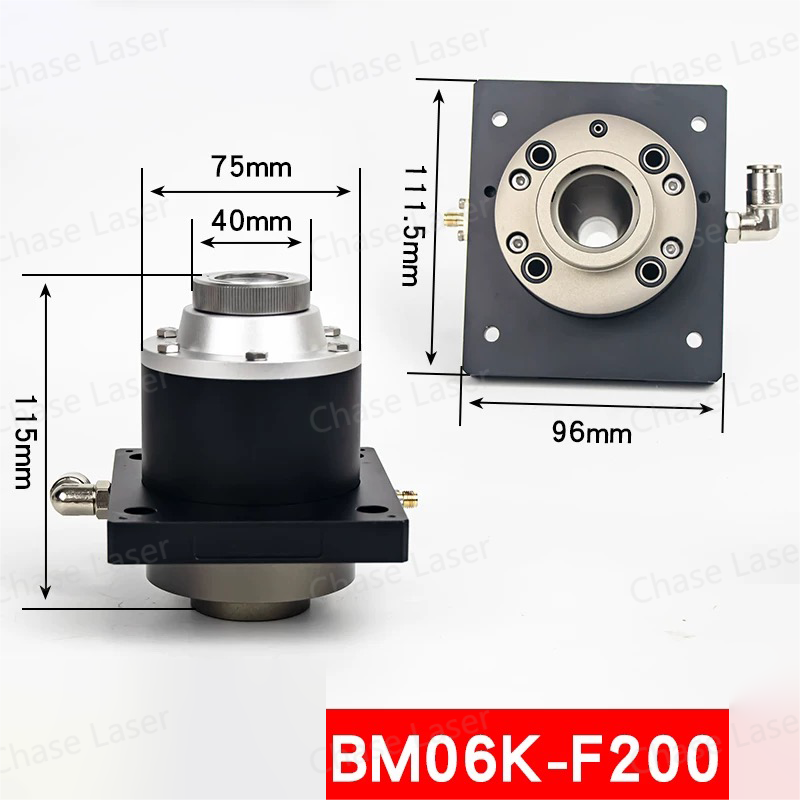

| Compatible heads (examples) | BM109, BM110 (pin/thread), BM111 (pin/thread), BM114-D28, BM114S-D32, BM115-F150, BM115-F200, BM06K-F150, BM06K-F200, BT210S, BT220 (flat), BT230, BT240, BT240S, BD04K, BD08K-1 3D, 220 3D |
| Function | Height sensing / cutting protection feedback |
| Weight | 1 kg (shipping weight) |
| Tax | Tax-free item |
| What’s in the box | Sensor module ×1; protective packing |
Installation Notes
- Power off and cool down the cutting head.
- Remove the old sensor and clean connectors/surfaces.
- Install the new sensor and ensure a firm, aligned connection.
- Run calibration / nozzle test according to the Raytools manual.
Recommended with: nozzle connector (ceramic holder), protective windows (e.g., D37×7, D24.9×1.5), ceramic rings, single- / double-layer nozzles.
Note: Compatibility list is provided for customer convenience. Always confirm your exact Raytools head model before purchase.
Courier freight is confirmed by destination, weight and carton size. We normally ship by DHL, UPS or FedEx with tracking.
If you are unsure about compatibility, send the cutting-head model, source model, part code or dimensions before ordering. Custom, special-order and opened optical parts are handled according to the agreed order terms.
